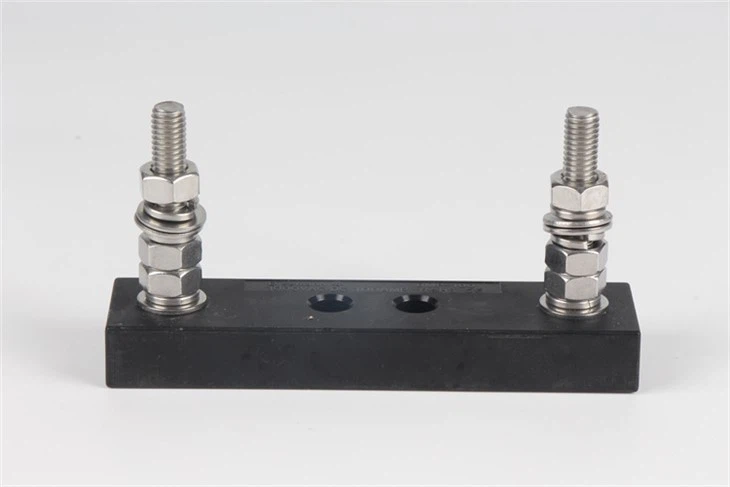

Dissmann Bolt Type Fuse Link Holder DMH-60
Dissmann Bolt type fuse link holder DMH-60 for Dissmann HEV series fuses and BS88 series fuses
1. Dimensions without tolerance indications shall comply with GB/T1804-V;
2. The material is bakelite, which conforms to RoHS;
3. It is equipped with 2 sets of M6 outer hexagon 304 stainless steel national standard coarse thread screw accessories (each set of accessories includes: 1 full thread bolt, 3 nuts, 3 flat washers, 3 spring washers);
4. Applicable to EP products.
Dimensions of the fuse holder:
Suiltable for the Dissmann fuse:
HEV-H-Q series fuse DC500V 35-60A fuse:
|
Model |
Rated Current |
I2t(A2s) |
Power dissipation
|
|
|
|
A |
Pre-arc |
Total |
W |
|
HEV-H-Q-35 |
35A |
33 |
145 |
8.5 |
|
HEV-H-Q-40 |
40A |
74 |
315 |
8 |
|
HEV-H-Q-45 |
45A |
100 |
430 |
8 |
|
HEV-H-Q-50 |
50A |
130 |
650 |
8.5 |
|
HEV-H-Q-60 |
60A |
200 |
880 |
10 |
|
Size code |
A±2 |
B±1.5 |
C±1 |
D±1.5 |
E±1.5 |
F±1 |
G±0.5 |
H±0.2 |
J±1 |
|
HZ1 |
81 |
22 |
40 |
55 |
66.5 |
9 |
15 |
3.3 |
14.75 |
BS88-HBD series fuse AC690/550V 16-100A fuse:
| Model | Product code | Rated current | I²t（A²Sec） | Power consumption | |
| A | Pre-arc | Fusing | W | ||
| EP/ET | HBD-16EP/HBD-16ET | 16 | 25.6 | 130.5 | 3 |
| HBD-20EP/HBD-20ET | 20 | 40 | 225 | 3.5 | |
| HBD-25EP/HBD-25ET | 25 | 25.3 | 255 | 6.8 | |
| HBD-32EP/HBD-32ET | 32 | 31.7 | 346.5 | 11 | |
| HBD-35EP/HBD-35ET | 35 | 51.5 | 495 | 11 | |
| HBD-40EP/HBD-40ET | 40 | 104 | 903 | 8.9 | |
| HBD-45EP/HBD-45ET | 45 | 106.5 | 1110 | 10 | |
| HBD-50EP/HBD-50ET | 50 | 118.5 | 1290 | 11 | |
| HBD-56EP/HBD-56ET | 56 | 137 | 1530 | 13.7 | |
| HBD-63EP/HBD-63ET | 63 | 168 | 1978 | 15.6 | |
| HBD-80EP/HBD-80ET | 80 | 353 | 3890 | 18 | |
| HBD-100EP/HBD-100ET | 100 | 1200 | 4350 | 17 | |
Other fuse and fuse holder you can choose from our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse（10*38，14*51，10*85，10*38 Holder,14*51 Holder,10*85Holder）
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series，10*38 Series)
10. Fuse blocks and holders
